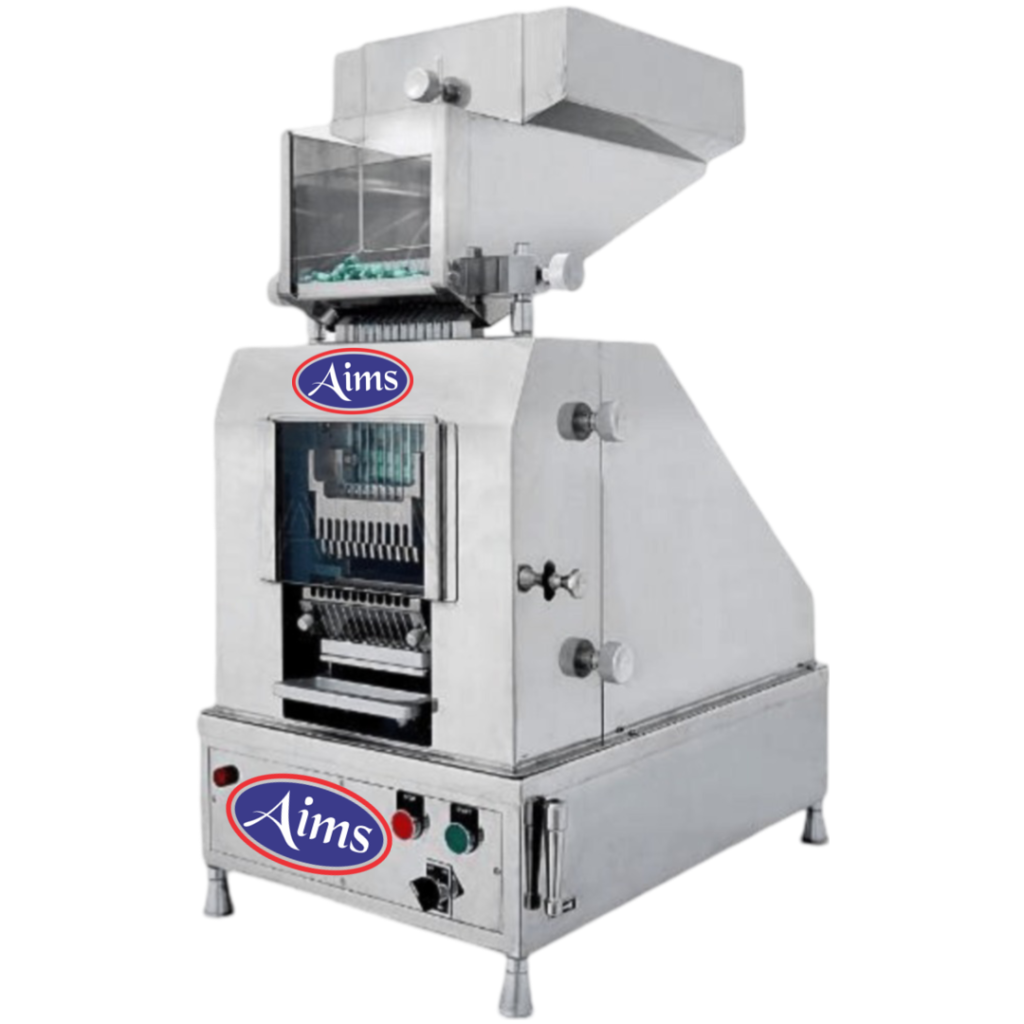

Capsule Loader
Overview
- Capsule Loader Is Suitable For Loading Empty Capsules In The Loading Tray Of Manual Capsule Filling Machine To Enhance The Productivity
- This Equipment Is Ideal For Medium Scale Industries To Enhance The Output.
- Maximum Output Of Almost 90 Trays Per Hours I.E. 27,000 Capsules / Hour.
- Automatic Capsule Loading In The Tray And Stopping After Loading Is Complete.
- Simple Operation & Moderate Output Which Occupies Minimum Space.
- Machine Assembly Has Been Done In Such A Way That It Can Be Easily Dismantle For Cleaning Operations.
- Though All The Operations Are Manual, The Machine Calls For Precision Machined Components And Assembled With Highly Skilled Personnel.
- Machine Having Wide Usage In R&D Laboratories, Research Institutions.
Salient Features
- cGMP Design Quality
- Certified As Per International Standards
- Dimensions As Per Drawing / Sample
- Made With Stainless Steel For Reduced Static And Long-Life.
- Material Of Construction : Stainless Steel 316-L / HCHC
- Herbal & Nutraceutical Preparations, Unani & Ayurvedic Medicines Etc.
- Cost-Effective : Save On Labor Costs And Minimize Errors With Automation.
- Durable Construction : Made From High-Quality Stainless Steel Material For Long-Lasting Performance.
- Easy To Clean : Designed For Quick And Easy Cleaning, Reducing Downtime.
- Capacity : 90 Trays Per Hours I.E. 27,000 Capsules / Hour Capacity To Saving Time.
- Suitability : Hard Gelatin, HPMC & Veg Capsules In 00, 0, 1, 2, 3, 4 & 5 Sizes
- Versatile Application : Suitable For Pharmaceutical, Nutraceutical, And Herbal Products.
- Versions : Standard Model, GMP Model, Stainless Steel 316 Model
- Usage : Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics
- User-Friendly Manual Operation : Easy To Use, Giving You Control Over Filling For Precise Results.
Technical Specifications
Output Capacity Per Hour | Up To 27,000 Capsules / Hour |
Noise Level (dB) | 80 dB Maximum |
Net Weight (Kg) | 125 Kgs. Approx. |
Gross Weight (Kg) | 150 Kgs. Approx. |
Overall Dimension (mm) | Length 750 X Width 450 X Height 900 |
Shipping Dimension (mm) | Length 1150 X Width 750 X Height 1100 |
Electric Motor (HP / kW / RPM) | 0.25 HP / 0.19 kW / 1440 RPM |
Electrical Power Supply | 230 Volts ± 10% / 50 Hz / 1 Φ Phase / A.C. Power Supply |
