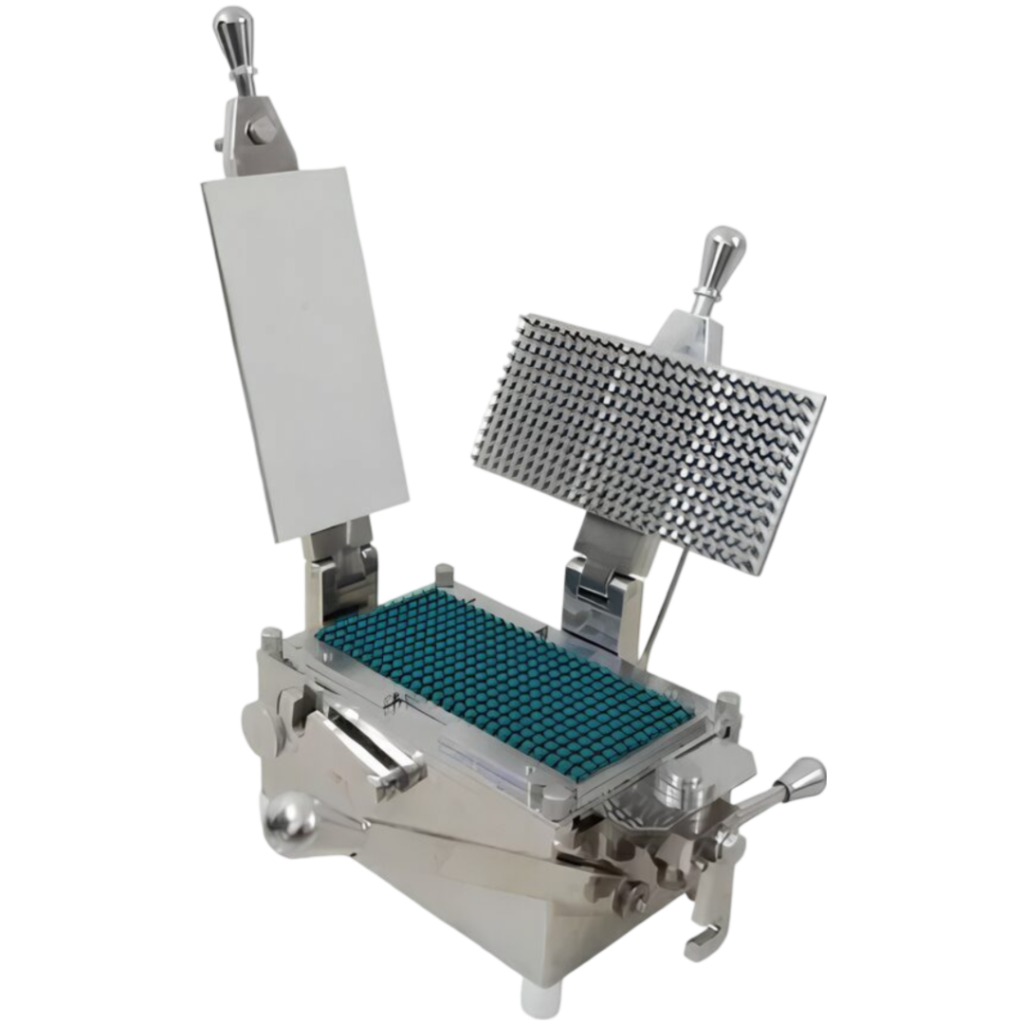

300 Holes Capsule Filling Machine
Overview
- 300 Holes Capsule Filling Machine Is Small Table Top Machine Suitable For Pilot Batch Productions.
- Machine Is Having 300 Holes With 25 X 12 Combinations Made In Stainless Steel Constructions Meeting GMP Requirements.
- Machine Can Fill Size 00 To Size 5 Capsules With Help Of Different Machines And Interchangeable Parts.
- Machine Assembly Has Been Done In Such A Way That It Can Be Easily Dismantle For Cleaning Operations.
- Though All The Operations Are Manual, The Machine Calls For Precision Machined Components And Assembled With Highly Skilled Personnel. Machine Having Wide Usage In R&D Laboratories, Research Institutions, Herbal & Nutraceutical Preparations, Unani & Ayurvedic Medicines, Pilot Batch Productions.
- Automatic Capsule Loader & Manual Capsule Loader Available As An Optional Equipments Along With Capsule Filler To Speed Up The Productions.
- Application : Filling Capsules With Powder, Pellets & Granules
- Cost-Effective : Save On Labor Costs And Minimize Errors With Automation.
- Durable Construction : Made From High-Quality Abs Plastic Material For Long-Lasting Performance.
- Easy To Clean : Designed For Quick And Easy Cleaning, Reducing Downtime.
- High Capacity : With 300 Holes, Fill Numerous Capsules Simultaneously, Saving Time.
- Suitability : Hard Gelatin, HPMC & Veg Capsules In 00, 0, 1, 2, 3, 4 & 5 Sizes
- Synonyms : 300 Holes Capsule Filling Machine, 300 Holes Capsule Filler
- Versatile Application : Suitable For Pharmaceutical, Nutraceutical, And Herbal Products.
- Versions : Standard Model, GMP Model, Stainless Steel 316 Model
- Usage : Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics
- User-Friendly Manual Operation : Easy To Use, Giving You Control Over Filling For Precise Results.
Salient Features
- cGMP Design Quality
- Certified As Per International Standards
- Dimensions As Per Drawing / Sample
- Change Parts For Each Capsule Size 00, 0, 1, 2, 3 Or 4 As Needed.
- Easy Handling Changes Of Size Plates.
- Ergonomic Features For Easy Cleaning And Avoid Of Contaminations.
- Lightweight Feeder Quickly Positions Capsules Into Filler.
- Manual Capsule Filler & Orienter Available In 100 Holes.
- Made From Stainless Steel For Reduced Static & Long-Life.
- Material Of Construction : Stainless Steel 316-L / HCHC Quality.
- Powder Tray Is Included To Minimize Powder Loss.
- 99% Orientation & 100% Capsule Separation.
Technical Specifications
MODEL | AIMS – MCF – 300 |
Output Capacity Per Hour | Up To 6000 Capsules / Hour |
Capsule Combinations | Size 00, 0, 1, 2, 3, 4 & 5 |
Sequence Of Holes | 25 x 12 = 300 Holes |
Number Of Loading Tray | Three Loading Trays |
Net Weight (Kg) | 45 Kgs. Approx. |
Gross Weight (Kg) | 55 Kgs. Approx. |
Capsule Orienter | 300 Holes Manual (Stainless Steel) |
Overall Dimension (mm) | Length 400 X Width 350 X Height 450 |
Accessories | Loading Tray, Top Plate Powder Dispenser PTFE Scrapper, Brush & Small Tools |
